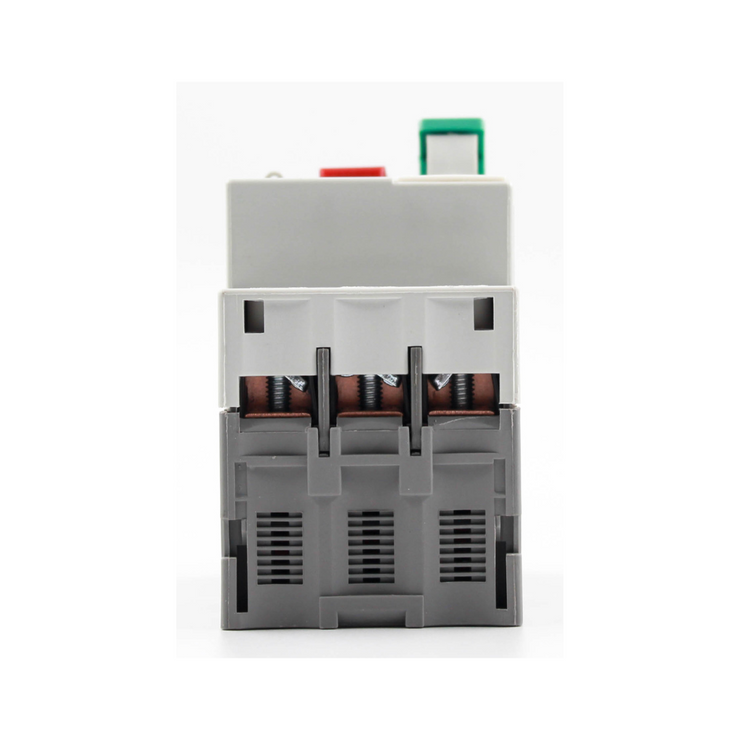

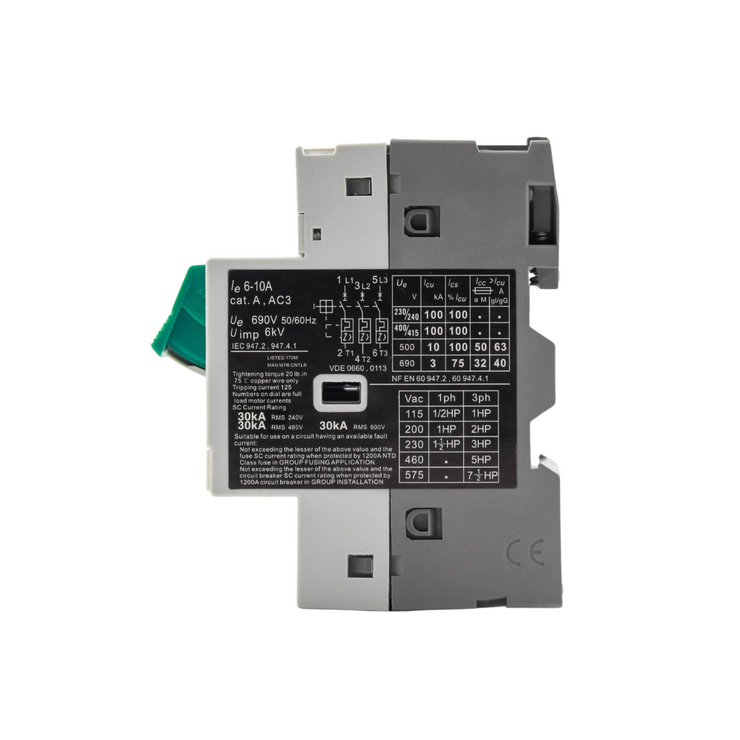

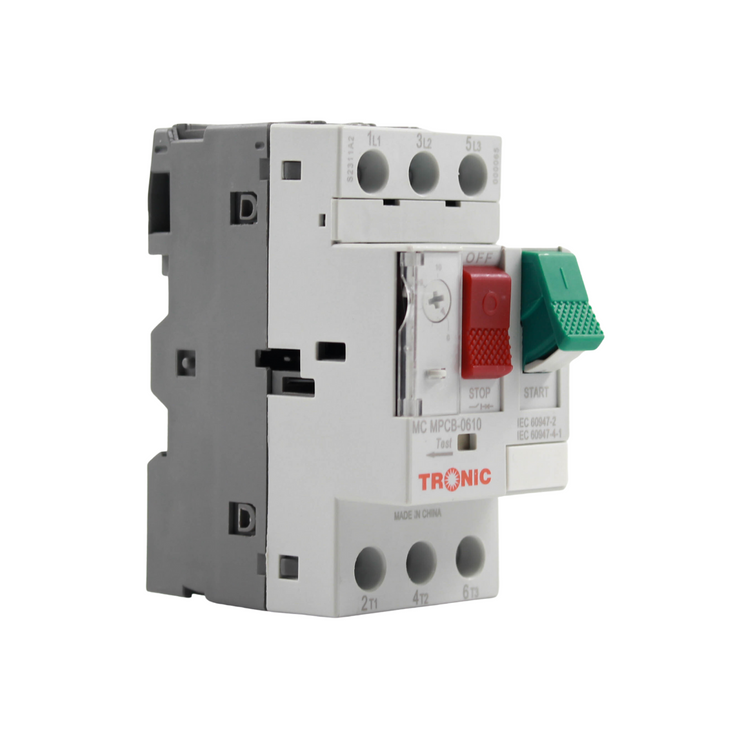

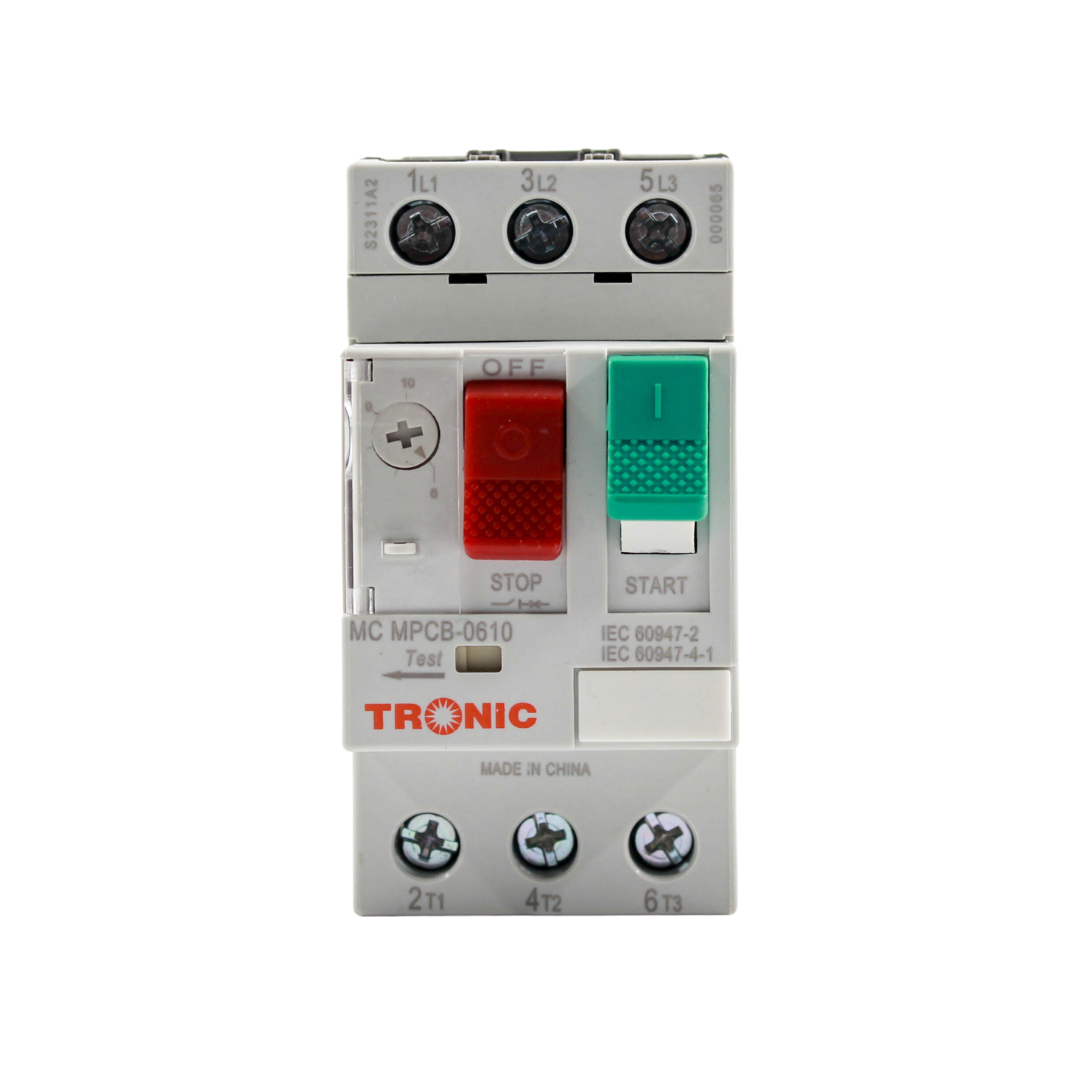

Motor Protection Circuit Breaker 6-10Amps

Motor Protection Circuit Breaker 6-10Amps

SKU MC MPCB-0610
50,000.00 TZS - 50,000.00 TZS
50,000.00 TZS
50,000.00 TZS
50,000.00 TZS - 50,000.00 TZS
50,000.00 TZS
Availability:
in stock, ready to be shipped

Delivery time

1-3 Days

Description

This Motor Protection Circuit Breaker is the ideal solution to protect your electrical motors from overload or short circuit, reaching 6-10A. Its integrated thermal-magnetic release ensures reliable protection and rapid detection, providing maximum safety.

Standard IEC60947-2, IEC60947-4-1
Approvals CE
Utilization Category According to IEC60947-2 According to IEC60947-4-1 A AC-3
Rated insulation voltage Ui(V) 690
Rated operational voltage Ue(V)              230/240,400/415,440,500,660/690
Rated impulse withstand voltage Uimp(kA) 8
Electrical life in AC-3(times) 10000
Mechanical life(times) 20000
Tightening torque(N.m) 1.7
Degree of Protection IP 20; IP65 with enclosure
Ambient air temperature(°C ) -5 to +40, max. 95% humidity
Storage temperature(°C ) -40~+70
Maximum operating altitude(meters) 2000



Type Current setting range (A) Instantaneous short-circuit(release(A) Thermal current Ithe(A) Standard rated power of thre-phase(kW)
230/240 400V 415V 440V
MC MPCB-0610 6-10 138.0 9 2.20 4.00 4.00 4.00

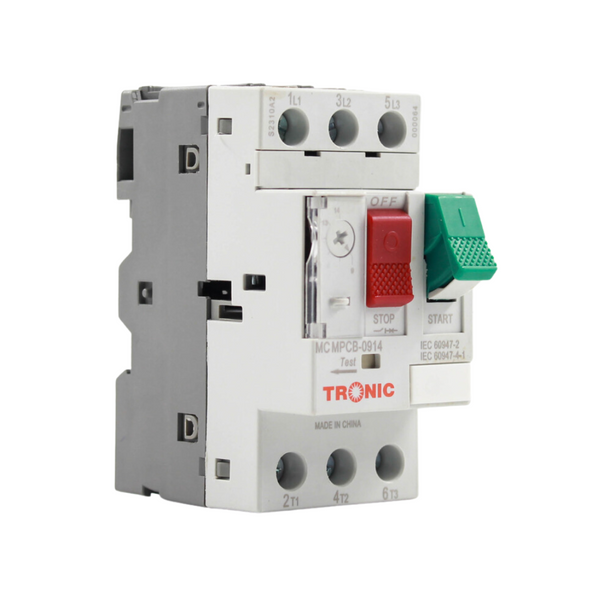

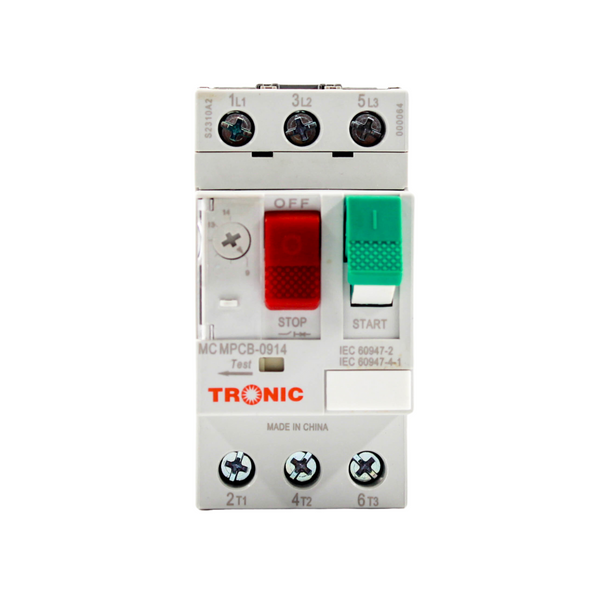

MC MPCB-0914 9-14 170.0 13 3.00 5.50 5.50 7.50

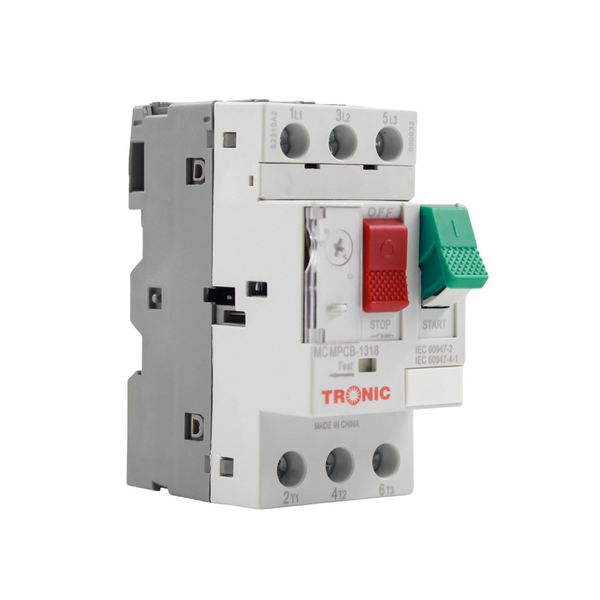

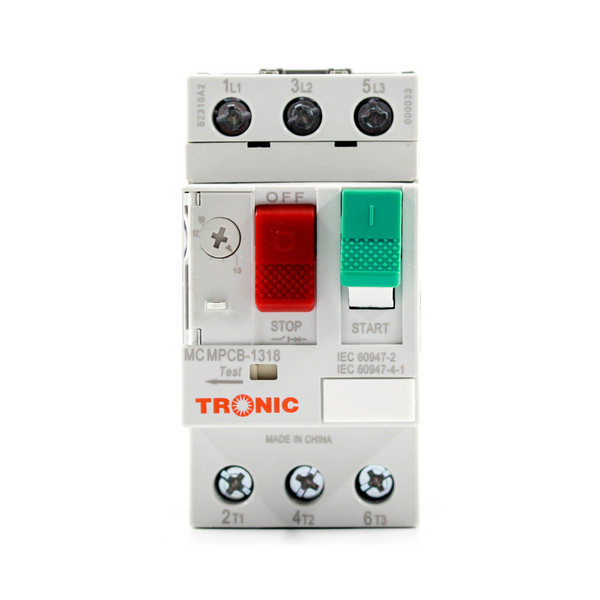

MC MPCB-1318 13-18 223.0 17 4.00 7.50 9.00 9.00

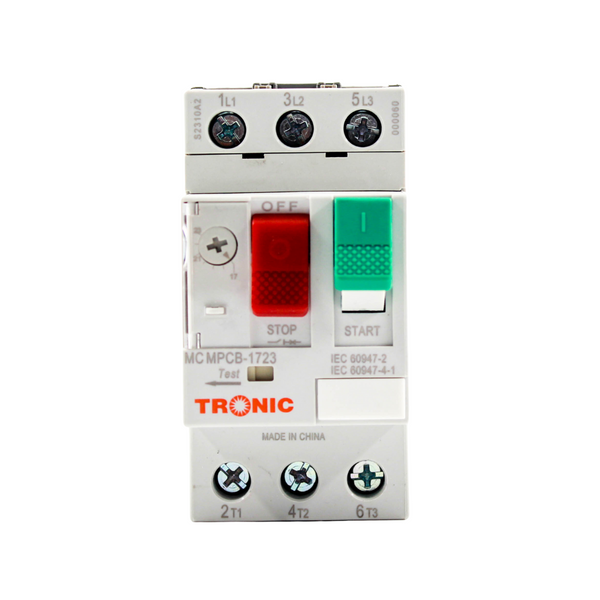

MC MPCB-1723 17-23 327.0 21 5.50 11.00 11.00 11.00

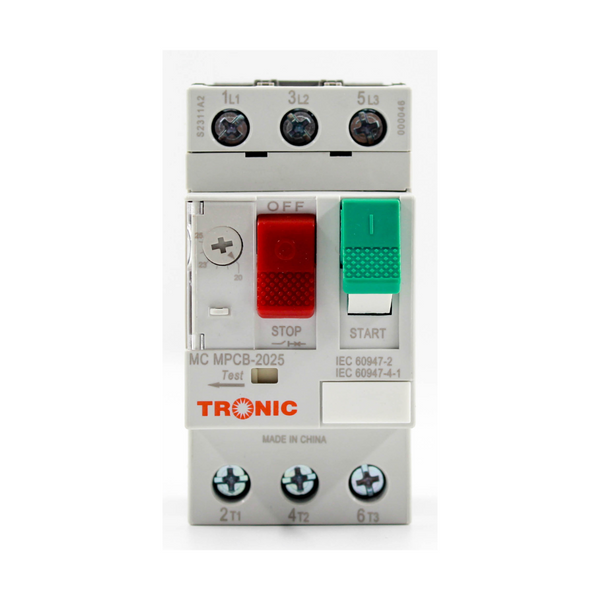

MC MPCB-2025 20-25 327.0 23 5.50 11.00 11.00 11.00

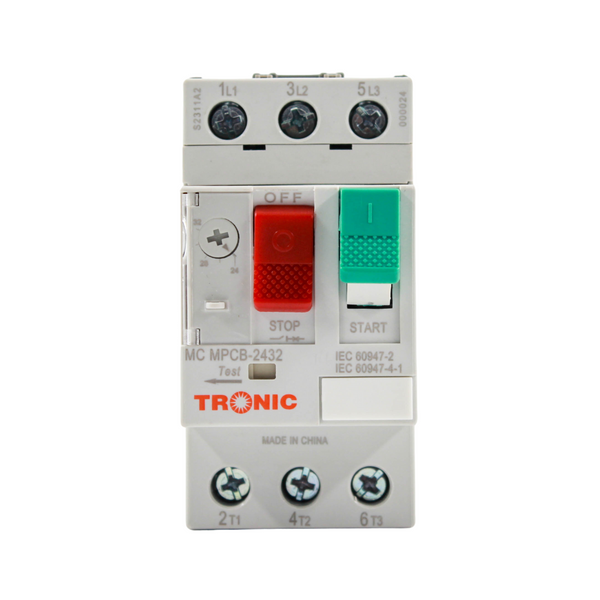

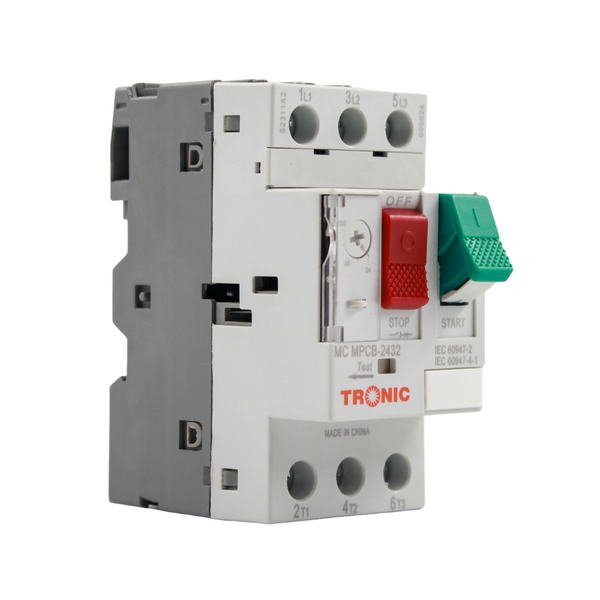

MC MPCB-2432 24-32 416.0 24 7.50 15.00 15.00 15.50
