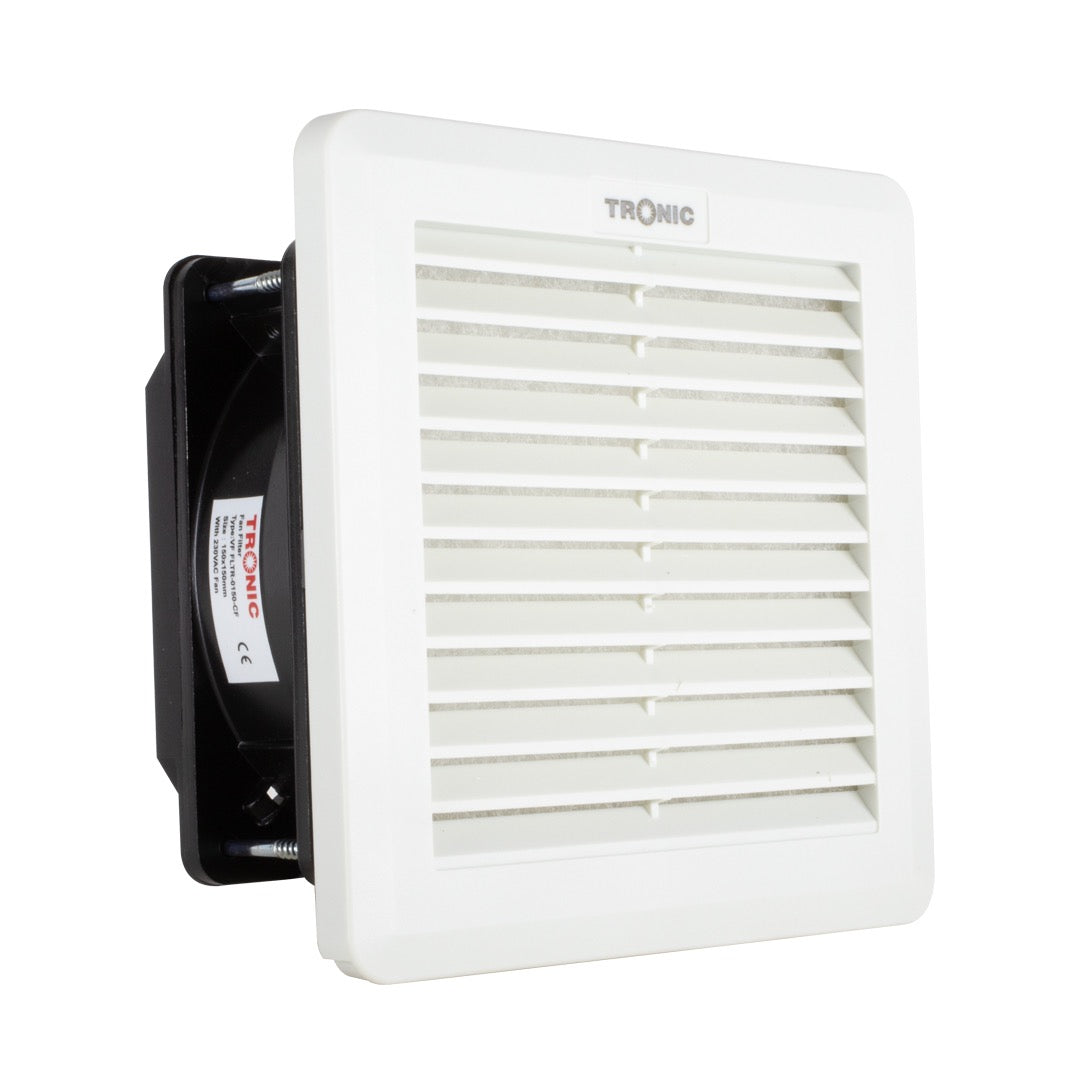

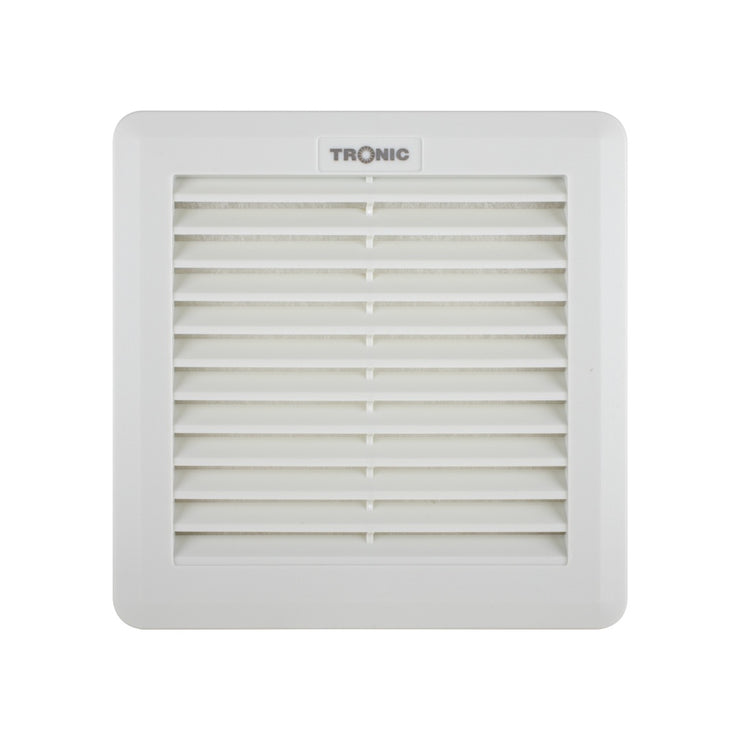

Cooling Fan With Filter

Cooling Fan With Filter

SKU VF FLTR-0150-CF
47,000.00 TZS - 47,000.00 TZS
47,000.00 TZS
47,000.00 TZS
47,000.00 TZS - 47,000.00 TZS
47,000.00 TZS
Availability:
in stock, ready to be shipped

Delivery time

1-3 Days

Description

Our fans are widely used in the control panels, junction boxes, power distribution box, automation equipment, electronic and power device, welding machine, packing etc.

 Additional Information

Model VF FLTR-0150-CF
Power Supply 230VAC
Item Dimensions (mm) 125×125×25
Air Flow Rate (free blow) (m3 /h) 96/112
Air Flow Rate (with Mat) (m3 /h) 65
Power Consumption (W) 16
Current Consumption (A) 0.08
Current Consumption (A) 39/42
Axial fan, ball bearing service life L10 at +40°C (+104°F): min. 37,000 h fan body aluminium, rotor metal
Connection 2 stranded wires, 160mm
Enclosure cut-out 125×125+1 mm
Mounting frame Fast Fixing with clips for different size thickness of cabinet and enclosure, no need screw fxing

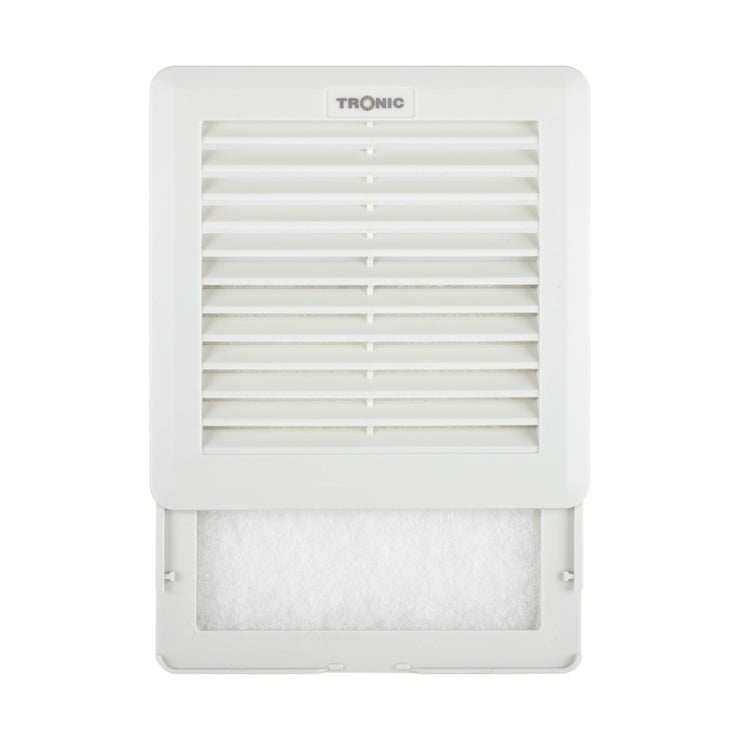

Filter mat G4 acc. to DIN EN 779, filtering degree 94%
Filter material New ABS material confirm to RoHS, Fireproof or not fireproof can be chosen
Operating/Storage temperature 25 to +65°C (-13 to +149°F) / -40 to +70°C (-40 to +158°F)
Operating/Storage humidity max. 90% RH (non-condensing)
Protection type/Protection class IP54 / I (earthed)
Additional Normally airflow direction is Out, if you need airflor direction In, when placing an order, kindly mention.
