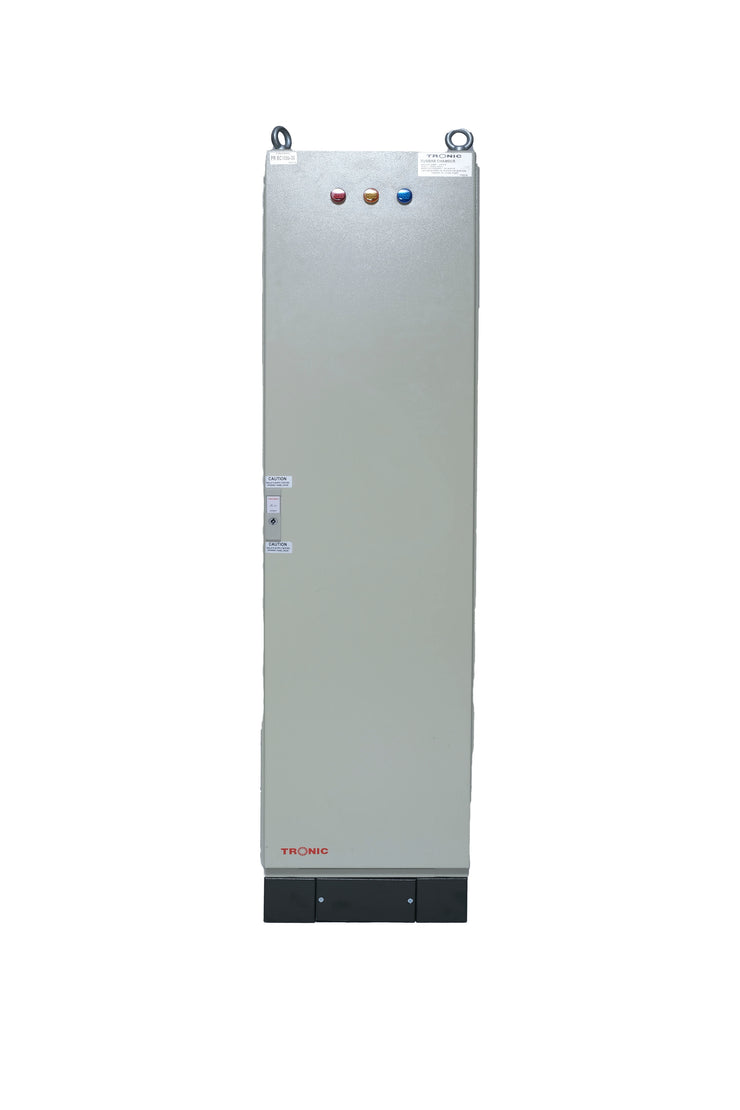

Busbar Chamber 1000A 30 Way
4,680,000.00 TZS
Product SKU : PR BC1000-30
Availability : In Stock
- description
The Busbar Chambers is fabricated using sheet steel (CRCA) of 1.6mm thickness and epoxy powder coated to give superior & lasting finish. The busbar sections are made of ETP grade copper & dull tin plated and the busbar supports are made of DMC(Dough molding compound). The neutral busbar is fully rated.

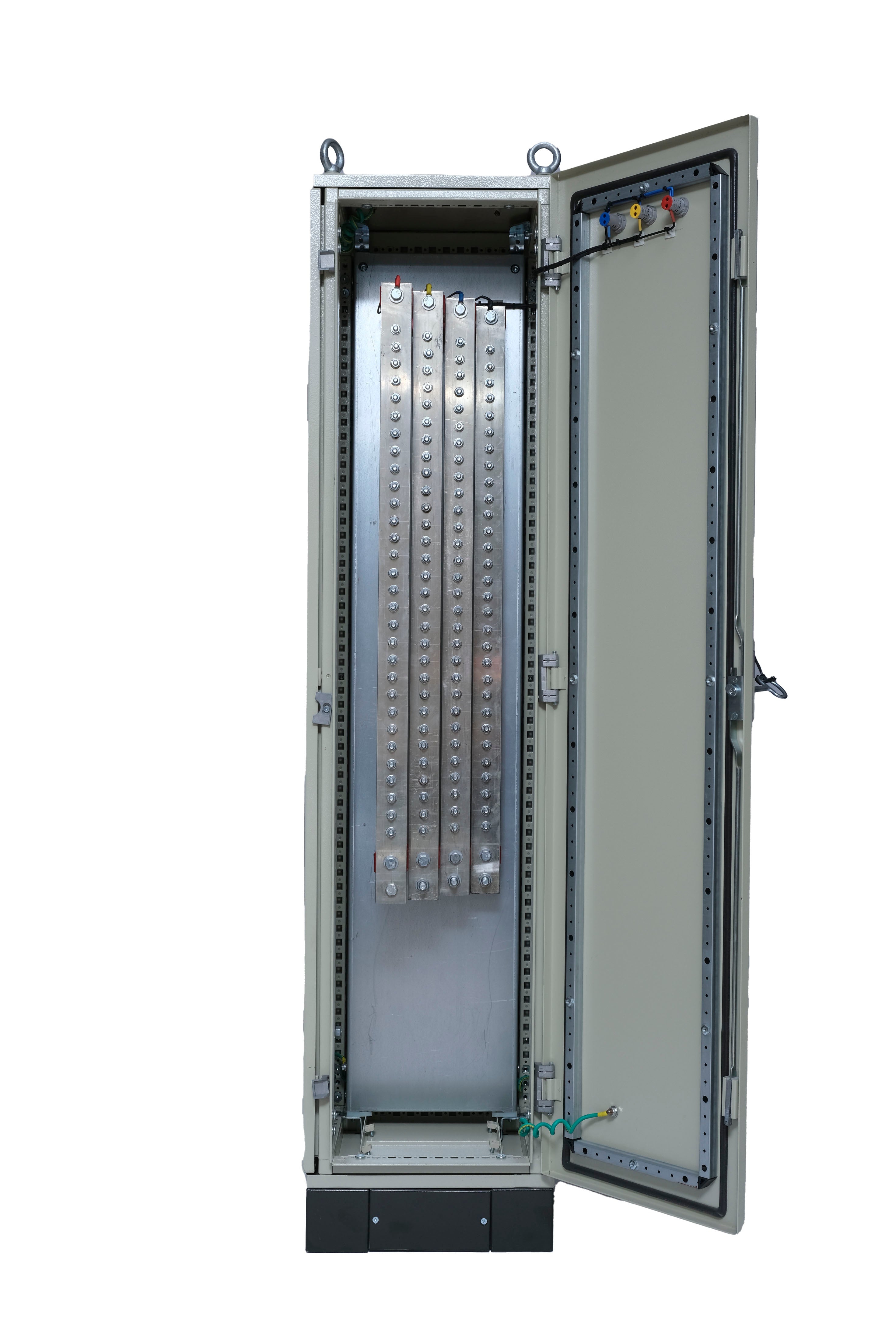

1000A TPN Busbar Chamber is a set of busbar strips housed inside of a freestanding enclosure designed for safe, reliable and economical distribution of high current to various loads.
| Additional Information |
| Functional components | Tinned Busbar strips for three phase and neutral | |
| Rated Voltage | 400V | |
| Rated Current | 1000A | |
| No. of outgoing ways | 30 ways | |
| Features | Readymade & customized solution for safe power distribution | |
| Modular/compact design provides economy of space and cost | ||
| Simple and efficient system configuration | ||
| Easy, flexible and time saving installation | ||
| Shock proof design | ||
| Elegant & sleek in appearance | ||
| Busbars vertically oriented | ||
| Short Circuit Withstand capacity | 50kA per second | |
| Enclosure details | Dimensions | 400mm (length) * 1700mm (height) * 400mm (depth) |
| Mounting | Freestanding | |
| Cable entry | Bottom | |
| IP Rating | 55 | |
| Input/output Terminals | M12 | |
| M8 | ||
| Pilot lamp indications | Provided on the Panel Door | 3 Phase Supply |
| Phase voltage readings | ||
| Operating environment | Vibration & Gas | No strong vibrations and no harmful gases that may corrode the metallic parts and damage the insulation |
